Model 212IC Invisible Closer Hinge

Finish:
Image of Finish
Image of Finish

The SOSS® Invisible Closer hinge gives you a door closer that is totally invisible from either side when the door is closed. The closure rate is completely adjustable with an allen wrench after installation, and does not require removal of the hinge. Installation can be either inside the door itself or inside the door jamb. The SOSS® Invisible Closer Hinge model #212IC is ideally suited for most types of doors that are 1-1/8″ thick. This closer hinge is made of zinc and steel materials. This hinge opens a full 180° and is a single action hinge.

Connect with Allegion Team

Features

 Medium Duty

 Concealed/Invisible Mortise

 Quality

 Durability

 Quick Ship

 Estimate & Order

Ideal For

 Woodworking Hardware

 Cabinetry

 Interior Closet Doors

Overview

The SOSS Invisible Closer hinge model #212IC can be used with or without the SOSS Hinge model #212 hinge to provide invisible automatic closing  for your door.  Allow one #212IC invisible closer for every 28 lbs. of door weight or portion thereof. The total number of hinges and closer hinges needed can be calculated using our hinge calculator or our hinge sizing chart.

Recommended spacing for use of one spring closer is half of the distance from the center line of the door to the center line of the top hinge.

Articles & Insights

For design inspiration, concealed hardware solutions, technical guidance, commercial application expertise, and industry insights to help you make informed decisions and stay ahead of emerging trends.

Explore Insights

Fully concealed hinge:
This hinge is fully mortised in the door and frame. No hardware can be seen from either side of the door when closed resulting in low hinge maintenance and minimal reveal lines.

Versatile installations:
This hinge can be used in wood or metal doors and frames. Fully adjustable closer rate after installation. Closer mechanisim can be installled in the door or frame.

Tamper proof:
Riveted non-removeable hinge pin and completely concealed closer mechanism for greater security.

Certifications:

  • REACH

A: 3/4″ (19.05mm)

B: 35/64″ (13.89mm)

C: 3-3/4″ (95.25mm)

D: 11/64″ (95.25mm)

E: 3/16" (4.76mm)

F: 2-1/16" (52.39mm)

G: 3/64" (1.19mm)

H: 1-5/64" (27.38mm)

I: 3/8" (9.53mm)

J: 3/8" (9.53mm)

K: 5-11/32" (135.73mm)

L: 1/2" (12.7mm)

Min. Matl. Thickness: 1-1/8″ (28.58mm)

Wood Screw Sizes: #10×1-1/4″ (4.8x32mm)

Soft Wood Pilot Hole: No. 43

Hard Wood Pilot Hole: No. 31

Machine Screw Sizes: #10-24×3/4″

Hinge Weight: 1.35 lb.

Model 100 Specification Drawing

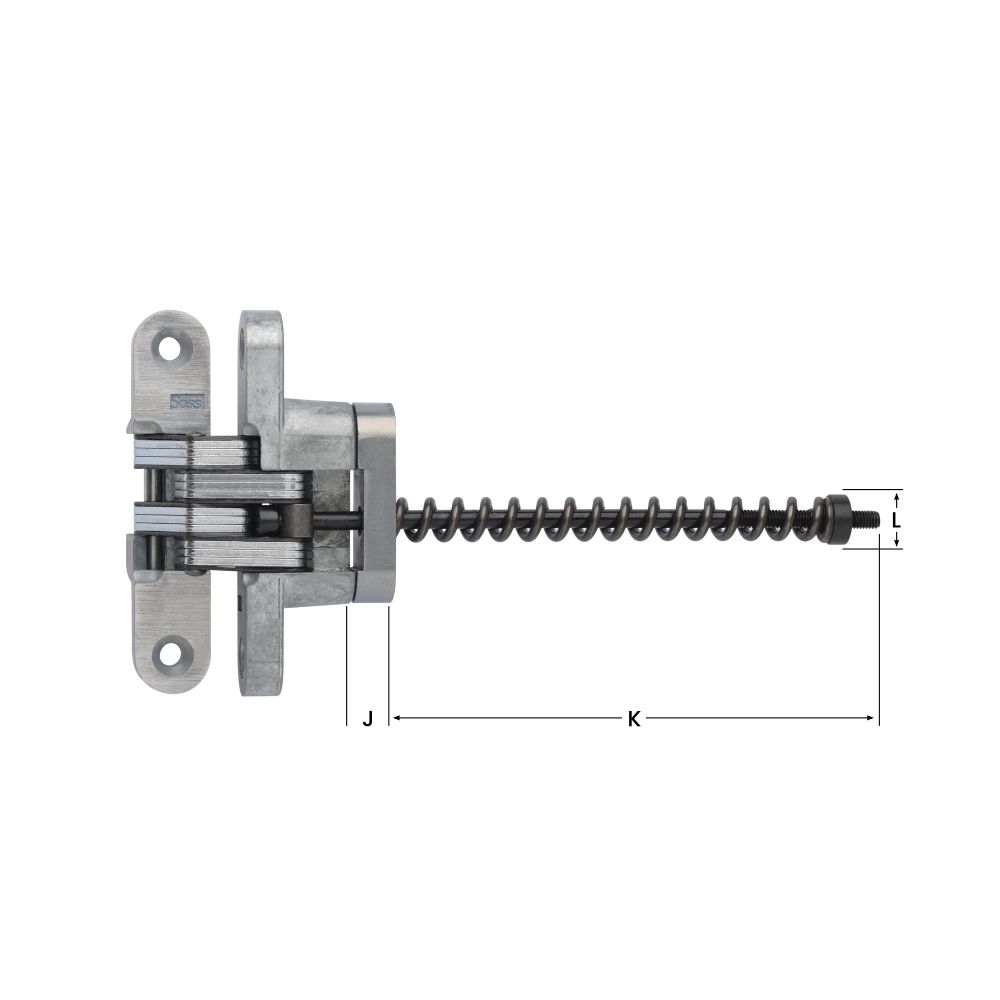

SOSS Dimensions
Athens

US5 - Antique Brass

Boardwalk

US3 - Bright Brass
BHMA Code 677



Boardwalk

US26 - Bright Chrome
BHMA Code 681

Athens

US14 - Bright Nickel

Boardwalk

US10BL - Oil Rubbed Bronze, Lacqured
BHMA Code 704

Boardwalk

US4 - Satin Brass
BHMA Code 678

Boardwalk

US26D - Satin Chrome
BHMA Code 682

Athens

US15 - Satin Nickel

Boardwalk

US19 - Black E-Coated
BHMA Code 676



Boardwalk

UNP - Unplated

Boardwalk

WH - White
