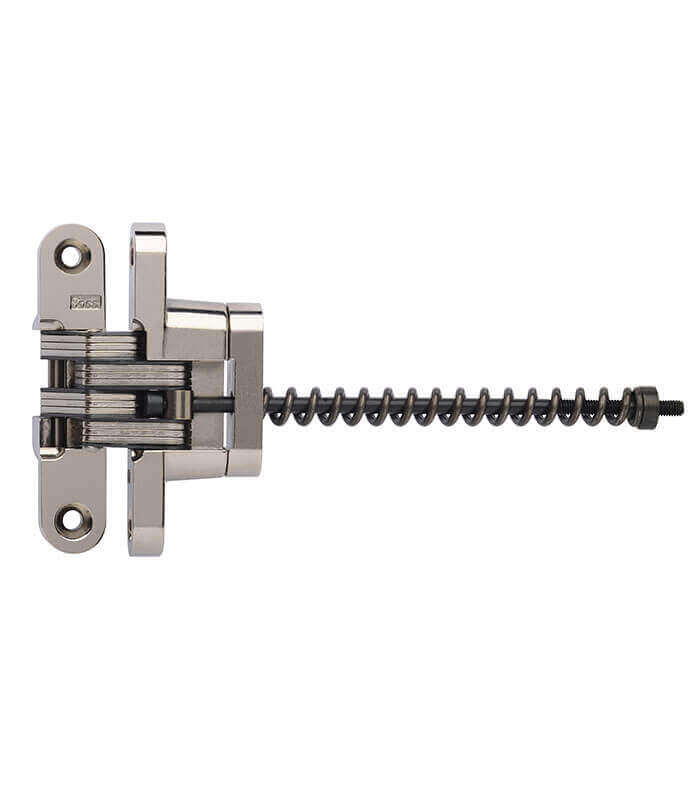

Model 212IC Invisible Closer Hinge

SOSS® Invisible Hinge model #212IC is ideally suited for most types of doors that are 1-1/8″ thick. The model #212IC is made of zinc and steel materials.The SOSS® Invisible Closer gives you a  closer that is totally invisible from either side when the door is closed. The closure rate is completely adjustable with an allen wrench after installation, and does not require removal of the closer. Installation can be either inside the door itself or inside the door jamb. SOSS® Invisible Hinges open a full 180° and are a single action hinge.

Find Your Local Store
Bright Stainless Steel
US32D Satin Stainless Steel
Clear

Description

SOSS® Invisible Hinge model #212IC is ideally suited for most types of doors that are 1-1/8″ thick. The model #212IC is made of zinc and steel materials.The SOSS® Invisible Closer gives you a  closer that is totally invisible from either side when the door is closed. The closure rate is completely adjustable with an allen wrench after installation, and does not require removal of the closer. Installation can be either inside the door itself or inside the door jamb. SOSS® Invisible Hinges open a full 180° and are a single action hinge.

Allow one #212IC invisible closer for every 28 lbs. of door weight or portion thereof. The total number of hinges need can be calculated using our hinge calculator or our hinge sizing chart in the drawings tab below.

Recommended spacing for use of one spring closer is half of the distance from the center line of the door to the center line of the top hinge. Please reference hinge spacing drawing.

Wood and machine screws are included.

Please call for further information.



Additional Information

Application Full Sized Entry, Metal, Wood
Min. Material Thickness 1-1/8″
Fire Rating No
Power Transfer No
Closer Yes
Counter Bored Screw Holes No
Screws Included Wood and Machine
Packaging 1 / Box = 1 Each
Packages Per Container 1 Each
Price Per Each

Dimensions

Drawings

Documents

Video Help

Installation instructions for the Soss hinge. Shows the use of the SOSS router installation guide.

Specifications
