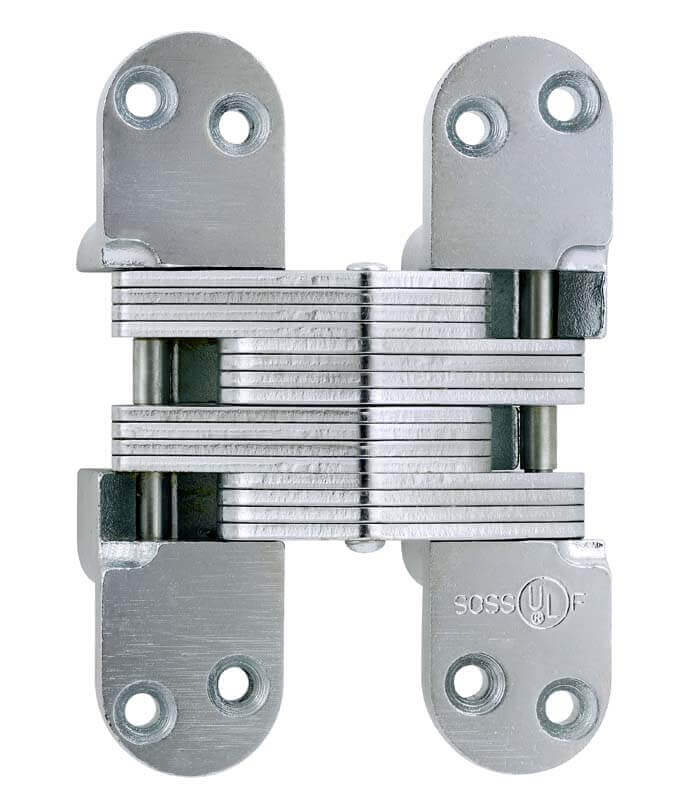

Model 220AS Alloy Steel Invisible Hinge

SOSS® Invisible Hinge model #220AS is for use in wood or metal applications that are 2″ thick.The model #220AS is made of alloy steel. SOSS® Invisible Hinges open a full 180° and are a single action hinge.

The Underwriters Laboratories labeled the model #220AS SOSS® Invisible Hinge can be used on hollow metal , sheet metal, tin clad, and steel composite swinging type fire doors and frames rated up to and including 3 hours. They can also be used on wood core doors and frames rated up to 20 minutes. Additionally, they can be used on wood/plastic composite doors and frames constructed with Georgia Pacific FS 1 or FS 2 banding for a rating up to and including 90 minutes.

Find Your Local Store
SKU: 220AS Category:

Description

SOSS® Invisible Hinge model #220AS is for use in wood or metal applications that are 2″ thick.The model #220AS is made of alloy steel. This full size door style hinge will provide superior appearance and durability. Our Hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. SOSS® Invisible Hinges open a full 180° and are a single action hinge.

The Underwriters Laboratories labeled the model #220AS SOSS® Invisible Hinge can be used on hollow metal , sheet metal, tin clad, and steel composite swinging type fire doors and frames rated up to and including 3 hours. They can also be used on wood core doors and frames rated up to 20 minutes. Additionally, they can be used on wood/plastic composite doors and frames constructed with Georgia Pacific FS 1 or FS 2 banding for a rating up to and including 90 minutes.

Use at least one fire-rated hinge for every 20″ of door height or portion thereof, or one hinge for every 60 lbs. of door weight or fraction thereof, whichever calculation demand more hinges.

Wood and machine screws are included.

Application Full Sized Entry, Metal, Wood
Min. Material Thickness 2″
Fire Rating 90 / 180 Minutes
Power Transfer No
Closer No
Counter Bored Screw Holes No
Screws Included Wood and and Machine
Packaging 1 / Box = 1 Each
Packages Per Container 1 Each
Price Per Each

Dimensions

Drawings

Documents

Video Help

Installation instructions for the Soss hinge. Shows the use of the SOSS router installation guide.

Specifications

See our Architectural Specifications page.
