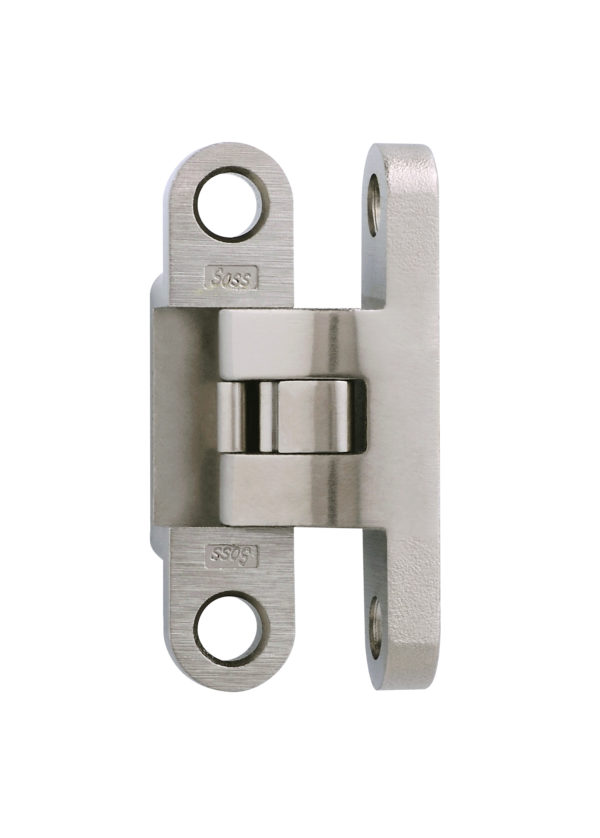

Model 504 Wrap-Around Invisible Hinge

The SOSS Invisible Hinge model #504 is a revolutionary design that allows it to wrap around molding and trim to create a completely hidden door with no reveal. It is designed for use in wood or metal applications that are a minimum of 3/4” thick. Model #504 is made out of zinc and alloy steel. It is the second hinge in the SOSS Invisible Hinge product line designed to stop at 92 degrees. Add molding and trim to your doors and wall for a truly unique and seamless look.



Find Your Local Store
Clear
SKU: 504 Category: Tags: ,

Description

SOSS® Invisible Hinge model #504 is for use in wood or metal applications that are a minimum of  3/4″. Model #504 is made of zinc and alloy steel materials. Solid alloy steel links add extra strength and durability.  This cabinet door style hinge is unique as it allows the door to wrap around applied molding, trim or overlay. Our hinges are found in many applications where flush fit, compact size, and smooth operation are necessary features. This is the second SOSS® Invisible Hinge designed to open only 92°.

Screws are included.

Please call for further information.





Additional Information

Application Cabinet, Metal, Wood
Min. Material Thickness 3/4″ (19.05mm)
Fire Rating No
Power Transfer No
Closer No
Counter Bored Screw Holes Yes
Screws Included Wood
Packaging 2 / Bag = 1 Pair
Packages Per Container 1 Pair
Price Per Each

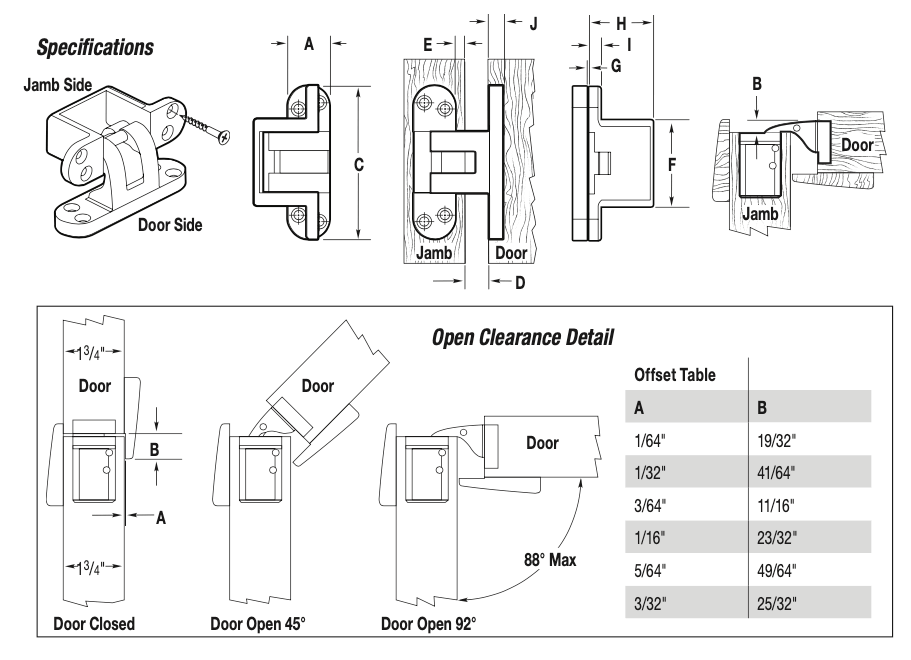

Dimensions

Drawings

Documents

Video Help

What can the SOSS model #504 wrap-around hinge do? Watch this video to learn more.

Specifications

See our Architectural Specifications page.
