Model 106 Concealed Surface Mount Invisible Hinge

SOSS® Invisible Hinge model #106 is for use in metal applications. The model #106 is made of zinc and steel materials. This special concealed surface mount SOSS® Invisible Hinge mounts on back of door and frame and requires no mortise. Hinge is visible from the back. The maximum door thickness is 5/64″.


Clear
SKU: 106 Category:

Description

SOSS® Invisible Hinge model #106 is for use in metal applications. The model #106 is made of zinc and steel materials. This cabinet style hinge will provide superior appearance and durability. This special concealed surface mount SOSS® Invisible Hinge mounts on back of door and frame and requires no mortise. Hinge is visible from the back. The maximum door thickness is 5/64″.

Screws are not included.

Please call for further information.



Additional Information

Application Cabinet, Metal
Min. Material Thickness NA
Fire Rating No
Power Transfer No
Closer No
Counter Bored Screw Holes No
Screws Included None
Packaging 2 / Bag = 1 Pair
Packages Per Container 5 Pair
Price Per Pair

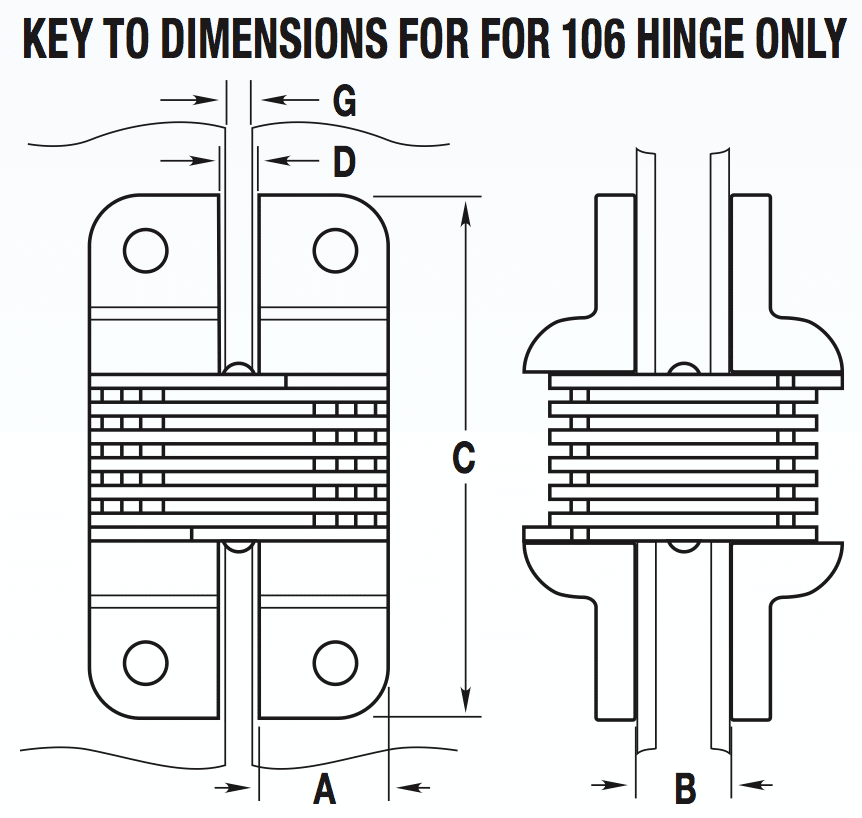

Dimensions

Drawings

Documents

Video Help

Installation instructions for the Soss hinge. Shows the use of the SOSS router installation guide.

Specifications
