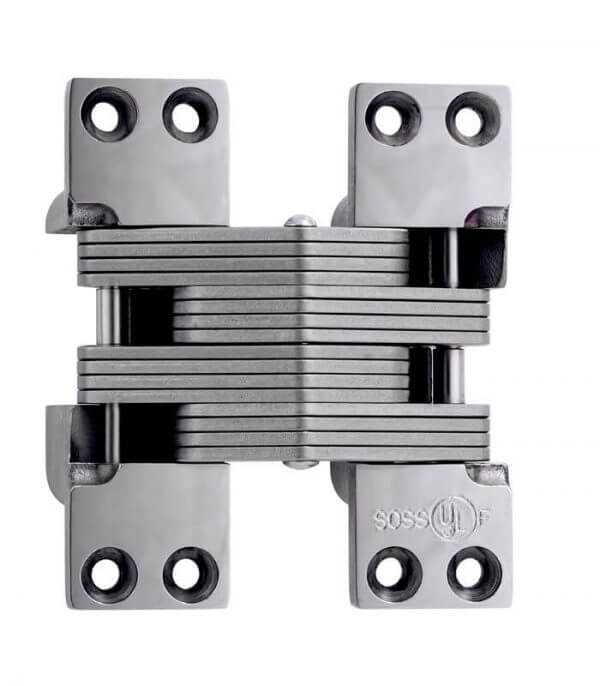

Model 420SS Stainless Steel Invisible Hinge

SOSS® Invisible Hinge model #420SS is for use in metal applications that are 2″ thick. Made of complete 316 stainless steel. Our hinges are found in many applications where flush fit, compact size, smooth operation, and corrosion resistance are necessary features. SOSS® Invisible Hinges open a full 180° and are a single action hinge.

The Underwriters Laboratories labeled the model #420SS SOSS® Invisible Hinge can be used on hollow metal, sheet metal, tin clad, and steel composite swinging type fire doors and frames rated up to and including 3 hours. Additionally, they can be used on wood core doors and frames rated up to 20 minutes.

Find Your Local Store
SKU: 420SS Category:

Description

SOSS® Invisible Hinge model #420SS is for use in metal applications that are 2″ thick. This full size door style hinge will provide superior appearance and durability. Made of complete 316 stainless steel. Our hinges are found in many applications where flush fit, compact size, smooth operation, and corrosion resistance are necessary features. SOSS® Invisible Hinges open a full 180° and are a single action hinge.

The Underwriters Laboratories labeled the model #420SS SOSS® Invisible Hinge can be used on hollow metal, sheet metal, tin clad, and steel composite swinging type fire doors and frames rated up to and including 3 hours. Additionally, they can be used on wood core doors and frames rated up to 20 minutes.

Use at least one fire-rated hinge for every 20″ of door height or portion thereof, or one hinge for every 60 lbs. or fraction thereof, whichever calculation demand more hinges.

Machine screws are included.

Please call for further information.



Additional Information

Application Exterior, Full Sized Entry, Metal
Min. Material Thickness 2″
Fire Rating 180 Minutes
Power Transfer No
Closer No
Counter Bored Screw Holes No
Screws Included Machine
Packaging 1 / Box = 1 Each
Packages Per Container 1 Each
Price Per Each

Dimensions

Drawings

Documents

Video Help

Specifications

See our Architectural Specifications page.
